.NET Development Tools for Mail-Filters.com's StarEngine

StarEngineBridgeManagerTester

A ready-to-run sample application that fully exercises the StarEngineManager class. You specify a set of emails files and the program reports the total number of SPAM and HAM messages found. Even includes a directory full of sample SPAM and HAM emails file to get you started.

Usage:
 StarEngineBridgeManagerTester threads id address port filemask

Where:
 threads specifies the number of simultainious scanning threads to use
 id is the Mail-Filters.com assigned id code to log into the StarEngine
 address is the ip address of the StarEngine server
 port is the listening TCPIP port of the StarEngine server
 path is a mask for the set of files to be scanned

Example:
 StarEngineBridgeManagerTester 4 12344G-2123-213345-S34554 127.0.0.1 25080 *.eml

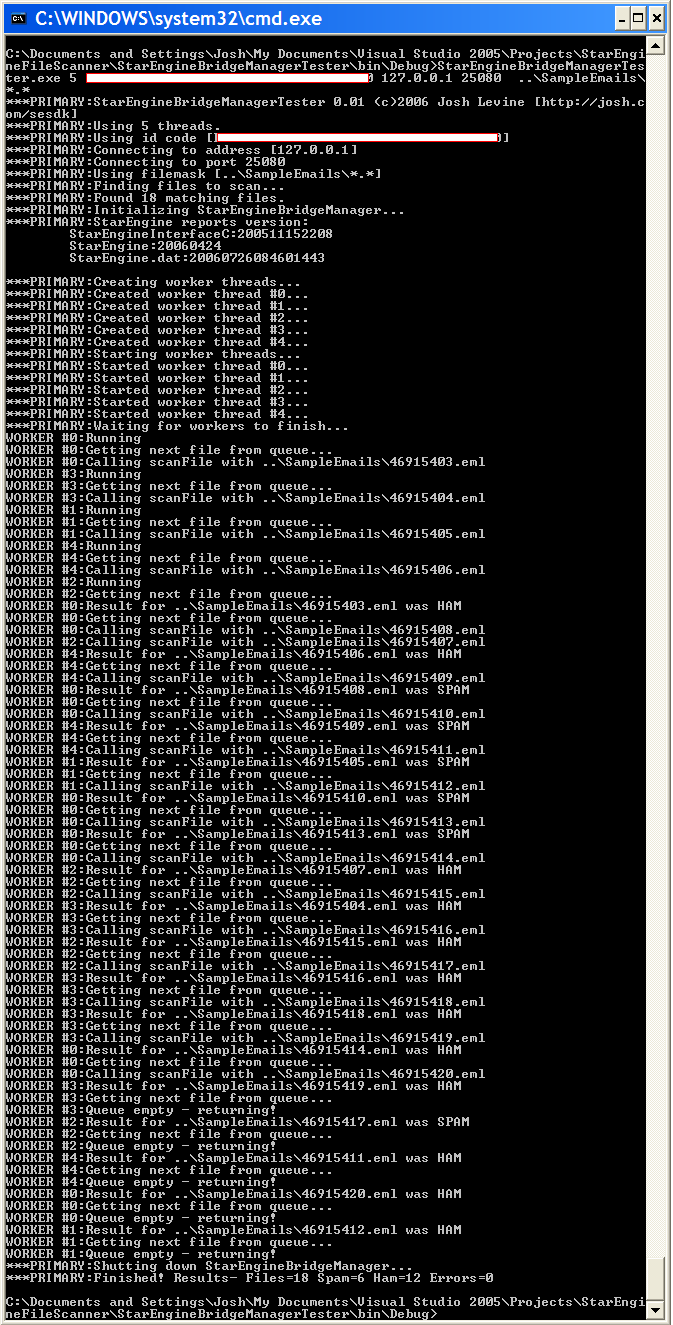

Here is a screenshot of a sample run

StarEngineBridgeManager

A high-level access interface that completely abstracts the StarEngine SDK connection details and presents a very simple class-based interface for scanning emails. Internally it uses a pool of connections to the StarEngine to avoid the overhead of opening and closing connections on each scan. It is thread safe - if there are more open calls to scanfile() than there are available connections then the calling threads wait in a queue for their turn.

The basic calling order is...

1. Initialize by calling the constructor with the address and port of your StarEngine.
2. Make any number of calls to scanfile(), each with the name of a single file containing an email message in RFC 822 format.
3. Call shutdown() to clean things up when you are done.

...that's it.

public class StarEngineBridgeManager {

// Create a new set of connections to a StarEngine to use for scanning emails
//
// connectionCount - number of connections to open. Must not exceed the max number of connections specified in
// the StarEngine config file. More connections use more resources, but mean there is less chance a scan will get held in a queue waiting for a free connection.
//
// id - the Mail-Filters.com suppled login id for the specified StarEngine.
//
// serverAddress - the ip address of a StarEngine to connect to.
//
// port - the TCP/IP the StarEngine is listening on (specified in the listenAddressAndPort section of the
// StarEngine config file)
//
// timeout - how long to wait before giving up on a connection. Probably best to use default value.
//
// attempts - number of attempts when making a connection. Also probable best to use default.

public StarEngineBridgeManager(int connectionCount, String id, String serverAddress, int port, int timeout, int attempts) throws StarEngineBridgeManagerException;

// Alternate Constructor with default values supplied for timeout and attempts

public StarEngineBridgeManager(int connectionCount, String id, String serverAddress, int port ) throws StarEngineBridgeManagerException

// Close all connections and shutdown. Any pending scanfile() calls will return with an exception.

public void shutdown() throws StarEngineBridgeManagerException

// Scan a file to see if it is SPAM
// scansize - only look at a maximum of this many bytes into the email
// Returns: true is spam

public boolean scanfile(String filename, int scansize) throws StarEngineBridgeManagerException;

// Alternate version with default value for scansize

public boolean scanfile(String filename) throws StarEngineBridgeManagerException;

// Returns a version string reported by the StarEngine that currently has the format...
//
// StarEngineInterfaceC:200511152208
// StarEngine:20060424
// StarEngine.dat:20060724014305067
//
// The last line is the most interesting since it gives the UTC time of the last database update received.

public String getVersionString() throws StarEngineBridgeManagerException;

}

StarEngineBridge

A thin wrapper around StarEngineDLL that presents the functions as a class that can be easily accessed from .NET languages. This is probably the level that many .NET applications will want to access the SDK. It gives full access to everything the SDK can do but hides the implementation details. You can drag this class directly into Visual Studio and start using it immediately.

Here is the class interface...

public class StarEngineBridge {

// Convert a return code from any of the StarEngineInterface functions
// int text based on defines contained in StarEngineInterfaceC.h

public static native String SEIC_Error_Text( int code );

// Convert a return code from any of the Windows Sockets functions
// int text based on defines contained in WinSock2.h

public static native String WSA_Error_Text(int code);

// Starts up the WinSock library. Must be called before attempting to
// start any connections via Start_Connection()
// Returns 0 on success or use WSA_Error_Text() to get error returned.

public static native int Call_WSA_Startup();

// Allocate a fixed size table of connections to the StarEngine
// Note that these connections must be initialized before use.
// Returns 0 if success, or SEDLL_ALLOC_FAILED if not enough memory.

public static native int Allocate_Connection_Table(int size);

// Sets up a new SEIC connection using one of the pre-allocated entries in the table.
// Must call Allocate_Connection_Table() first
// index must be less than the size specified in Allocate_Connection_Table()
// Returns 0 on success, or if <0 use SEIC_Error_Text() to get error message
// Can also return...
// SEDLL_INVALID_INDEX is index is greater than number of connections allocated in Allocate_Connection_Table()
// SEDLL_ID_TOO_LONG if the id string is too long
// SEDLL_ADDRESS_TOO_LONG if the address string is too long

public static native int Start_Connection(int index, String id, String serveraddress, int serverport, int timeout, int attempts);

// Scan a file that contains an RFC 822 email in it
// Returns:
// 1 = HAM
// 2 = SPAM
// 3 = NOT SPAM
//
// SEDLL_INVALID_INDEX = index is greater than the size specified in Allocate_Connection_Table()
//
// Or if <0 use SEIC_Error_Text() to get error message

public static native int scanfile( int index , String filename, int scansize );


public final static int DEFAULT_SCAN_SIZE = 64000;

public final static int SCANFILE_RET_HAM = 1;
public final static int SCANFILE_RET_SPAM = 2;
public final static int SCANFILE_RET_NOTSPAM = 3;

public final static int VERSION_STRING_BUFFER_SIZE = 1000; // More than big enough for the current 3-line string


// Gets a text string that includes the current version of the interface, the StarEngine,
// and the rules file.
//
// Returns 0 on success, or if <0 use SEIC_Error_Text() to get error message
// Returns SEDLL_INVALID_INDEX if index is greater than the size specified in Allocate_Connection_Table()

public static native int versionCheck( int index , byte[] buffer , int bufferSize );

// Shuts down a connection previously started with Start_Connection()
// Note than the connection can be restrted again with Start_Connection() after it has been shutdown
// Returns 0 on success or use SEIC_Error_Text() to get error message

public static native int ShutDownConnection(int index);

// Free any resouces that were allocated durring Allocate_Connection_Table()
// Be sure that all connections have been shutdown first

public static native void Free_Connection_Table();

// Shutdown the WinSocket library. You should call this after you've shutdown all open connections.
// Returns
// 0 = no error
// Use WSA_Error_Text() to get error message if not 0

public static native int Call_WSA_Cleanup();

}

StarEngineInterfaceDLL

This is a very thin C wrapper over the SDK LIB file to turn it into a DLL and make it accessible from managed code. There is basically a one-to-one mapping of the calls in the SDK LIB file without any abstractions. These calls are exported from the DLL, so all calls into it must be set up as "extern DLL".

Note that you need the LIB and H files from the SDK to compile this DLL, but the resulting DLL (included in the ZIP) is all you need to make calls from a a Visual Basic or C# project.

Here is the header from the source file...

// StarEngineInterfaceDLL.cpp
// ==========================
// (c)2006 Josh Levine [http://josh.com]
//
// This program exposes the C-based StarEngineInterfaceC.lib library as
// as a minimally wrapped DLL so the functions can be called from .NET
//
// Note that you need the following files to build this program...
// StarEngineInterfaceC.h
// StarEngineInterfaceC.lib
// Both files are from the StarEngine SDK available from Mail-Filters.com
//
// Calling order for using the DLL...
//
// A - Call Call_WSA_Startup() to initialize the Windows Sockets lib
// B - Call allocateParamTable()with the maximum number of connections you will ever have
// C - Call FillAndInitSEICStruct() for each connection before you use it
// D - Call scanfile() and/or versionCheck()- but only one pending request per connection
// C - Call ShutDownSEICStruct() for each connection when you are done using it
// B - Call freeParamTable() to release the parameter table
// A - Call Call-WSA_Cleanup() to shutdown Windows Sockets

StarEngineDirectFileScanner

This is an example of bare-metal linked-in access to the C++ SDK LIB from C++. It can be used to test a StarEngine installation, and small and efficient enough to be used in a production environment if all you need is a command line way to test files for spamness.

Here is the help screen from the program:

This is a command line interface to scan a single email message in a file
using the Mail-Filters.com StarEngine service to determine if it is spam.

To use this program, you must have a access to an installed copy of the
StarEngine service.

Usage:
StarEngineFileScanner [/Ttimeout] [/Aattempts] [/Sscansize] id address port [filename]

Where:
 timeout is the number of seconds wait for a connection in secs
 attempts is maximum number of connection attempts
 scansize is maximum number of bytes to scan
 id is the Mail-Filters.com assigned ID for this installation
 address & port point to the listening StarEngineInterface
 filename is a file that contains an RFC822 style email message

 if filename is omitted, connects to StarEngine and prints version info

Returns ERRORLEVEL:
 1 if there was an error initializing the StarEngine interface
 2 if there was an error processing the file
 3 if there was any other error
 4 if the message is HAM
 5 if the message is NOT SPAM
 6 if the message is SPAM

Example:
 -----
 StarEngineFileScanner /S32000 27165F-123A12-FE34545 127.0.0.1 25080 275413.eml
 if ERRORLEVEL 6 del 275413.eml

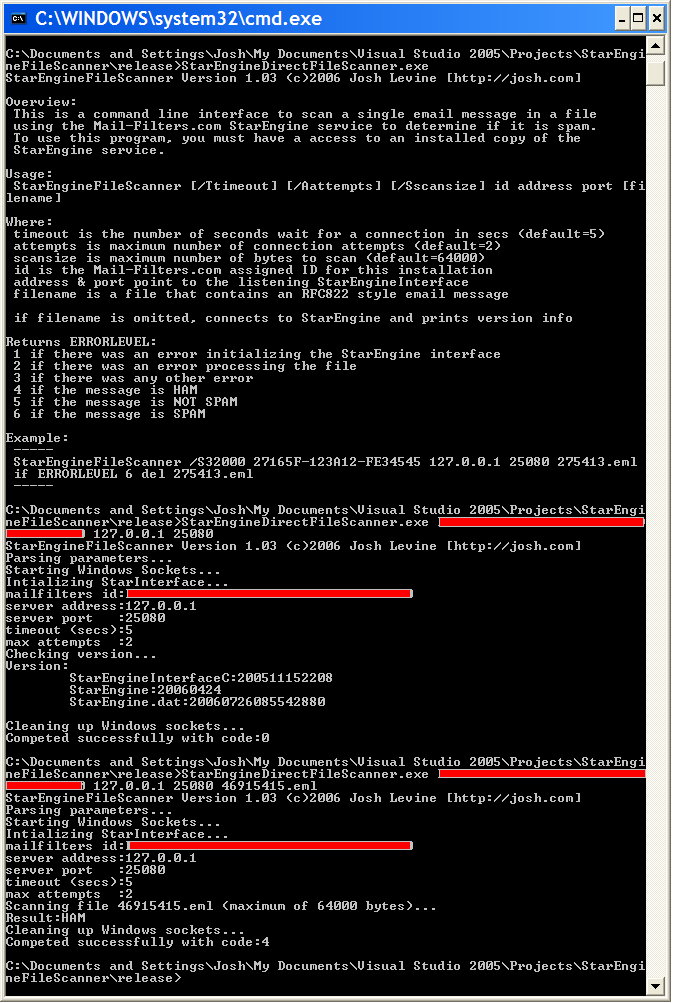

Here is a screenshot of a sample run
